Lupine Plan #13

Lupine Plan #13

49.99 99.99

Description

Plans are sold as PDF plan sets for immediate electronic download and inexpensive local printing.

  • Design standards: 2018 International Residential Code

  • Seismic design category: D1

  • Wind exposure: B

  • First floor load: 40 PSF LIVE / 10 PSF DEAD

  • Roof load: Per truss manufacturer

  • Snow load: Per local code. Easily modified up to 70 PSF.

  • House size: 856 SQ FT

  • House dimensions: 22’ X 38’

  • Porch: 150 SQ FT

  • Deck, optional: 228 SQ FT

  • Levels: 1

  • Overall height: 16’ - 3 11/16”

  • Bedrooms: 2

  • Bathroom(s): 1

  • Foundation type: Ventilated crawl space.

  • Insulation: R-38 floor, 2x6 R-21 walls, R-49 attic (adjustable by climate zone)

  • Heating system: Ductless mini-split + LPG/GAS fireplace

  • Water heating: Tankless electric

  • Print size: ARCH D 24" X 36” (A1 594 X 841); Black & white sheets

  • Delivery: immediate PDF download (includes license to build one house).

  • Additional engineering or modifications could be required for permitting, check local codes.

  • A SketchUp model is available for this plan.

What’s in this plan

Sheet Index:

  • A101: Cover sheet with project details

  • A201: Site plan (blank sheet for local modification)

  • A301: Foundation plan

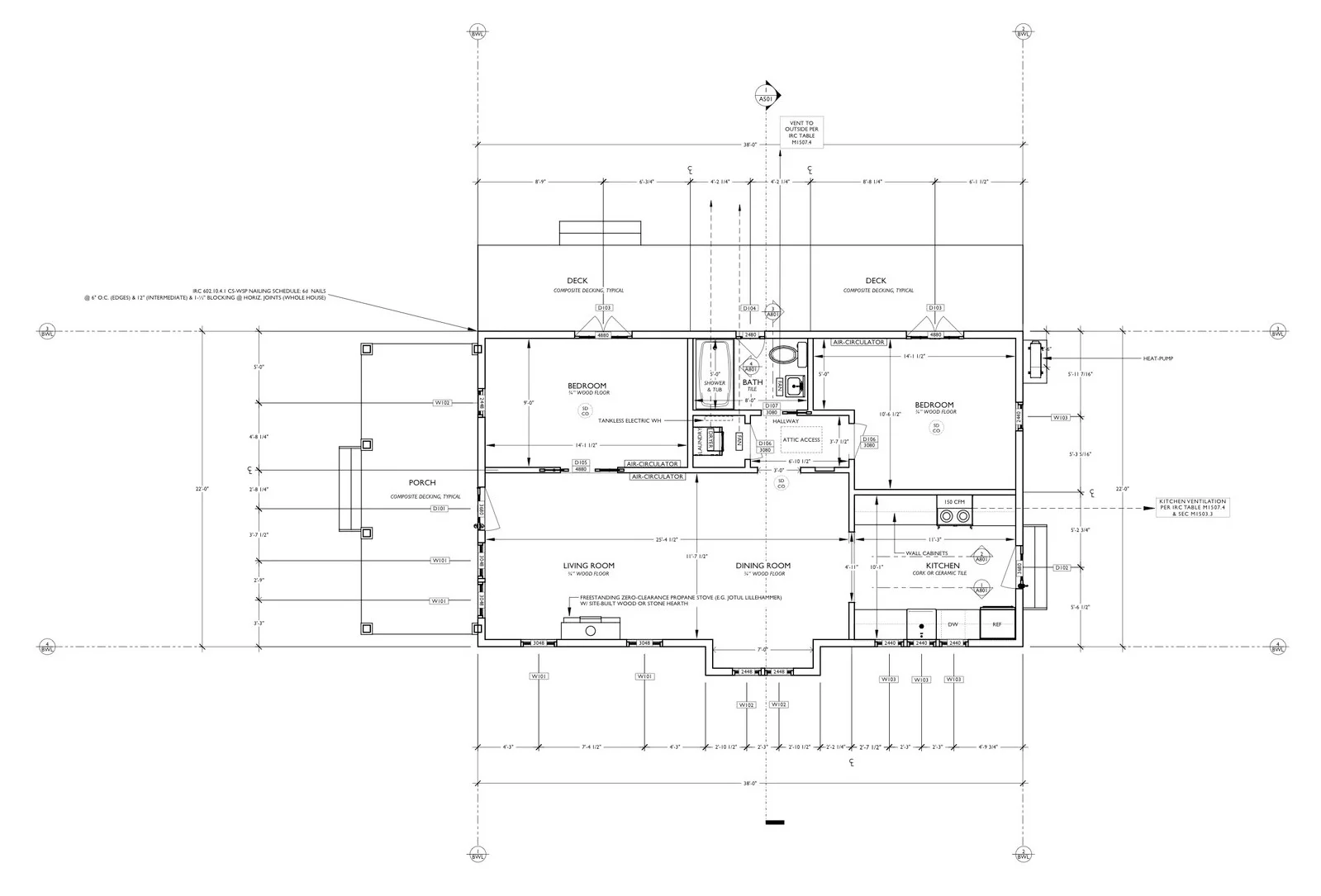

  • A401: Floor plan (with window & door schedules, braced wall schedule)

  • A402: Floor framing plan

  • A403: Roof framing plan

  • A404: Electrical plan

  • A501: Building sections

  • A601: Building elevations

  • A701: Wall section details

  • A801: Construction details

  • A901: Kitchen & bathroom elevations

  • A1001: IRC schedules
