#39 Ithaca Modern Plan

#39 Ithaca Modern Plan



Plans are sold as PDF plan sets for immediate electronic download and inexpensive local printing.

  • Bedrooms: 2

  • Bathrooms: 1

  • Floors: 1

  • Conditioned space: 840 sq ft

  • Overall dimensions: 28' x 30'

  • Foundation type: Insulated Slab

  • Insulation: R-60 ceiling, R-28 walls, R-20 Slab.

  • HVAC: Propane fireplace, Heat Pump, HRV/ERV

  • Print size: 24" x 36"

  • Immediate PDF download with license to build

  • Design criteria: International Residential Code. Additional engineering or modifications may be required in your area, check local codes.

Buy the modifiable SketchUp Model for this plan.

What’s in this plan

Sheet Index

  • A101: Project Details/Cover Sheet

  • A201: Site plan

  • A301: Foundation plan & details

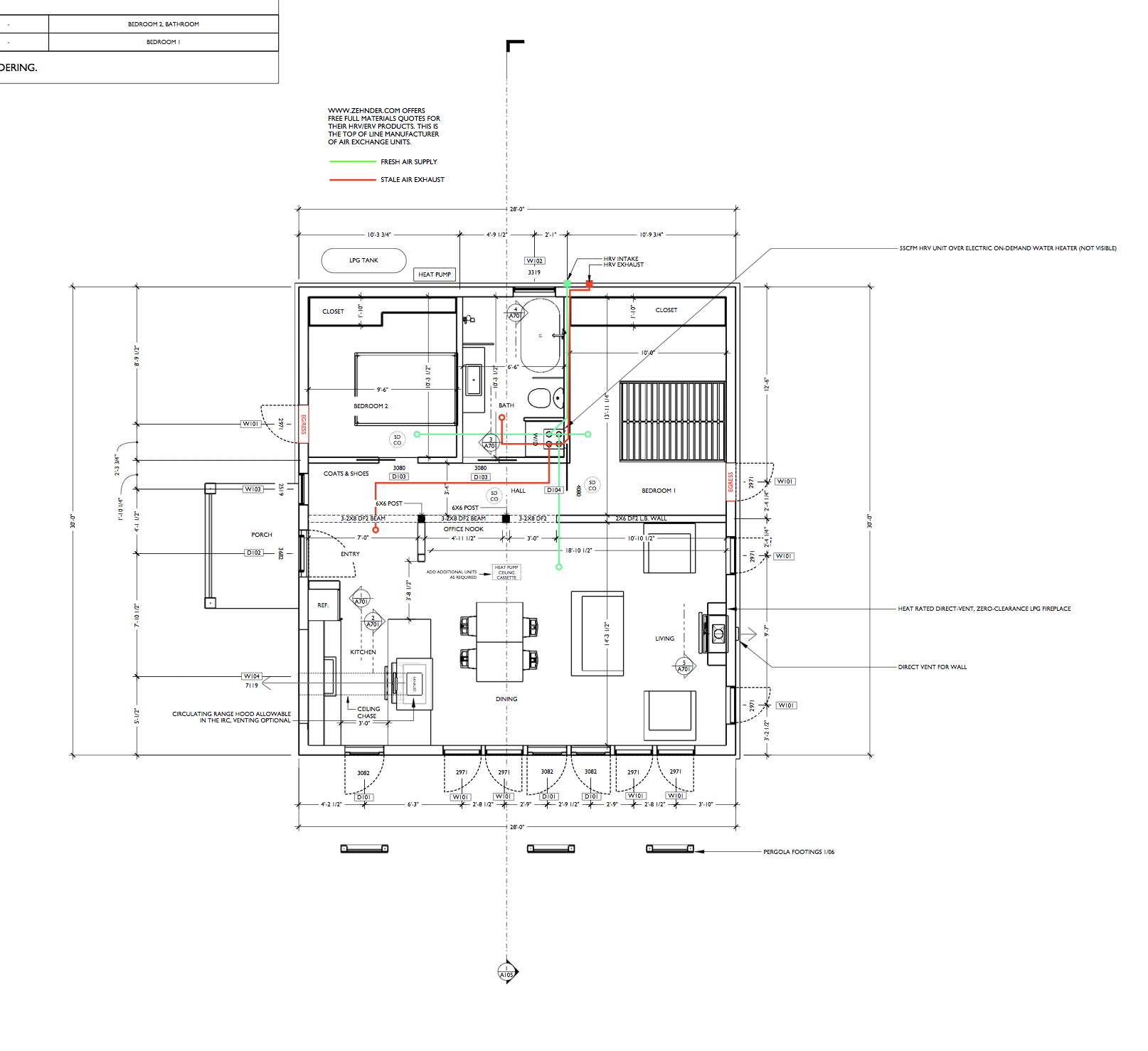

  • A401: Floor plan, HRV/ERV plan, heating plan, fixtures & appliances; window schedule. door schedule.

  • A402: Braced wall plan (for seismic & high wind)

  • A403: Roof framing plan

  • A404: Electrical plan

  • A405: Rough-in plumbing plan for slab

  • A501: Building and wall sections

  • A601: Exterior elevations

  • A701: Interior elevations of kitchen, bathroom & fireplace

  • A801: Construction details

  • A901: IRC fastener schedules
