No. 58 - Fieldview

49.99
Plan No. 58 - Fieldview (Small House Catalog).png

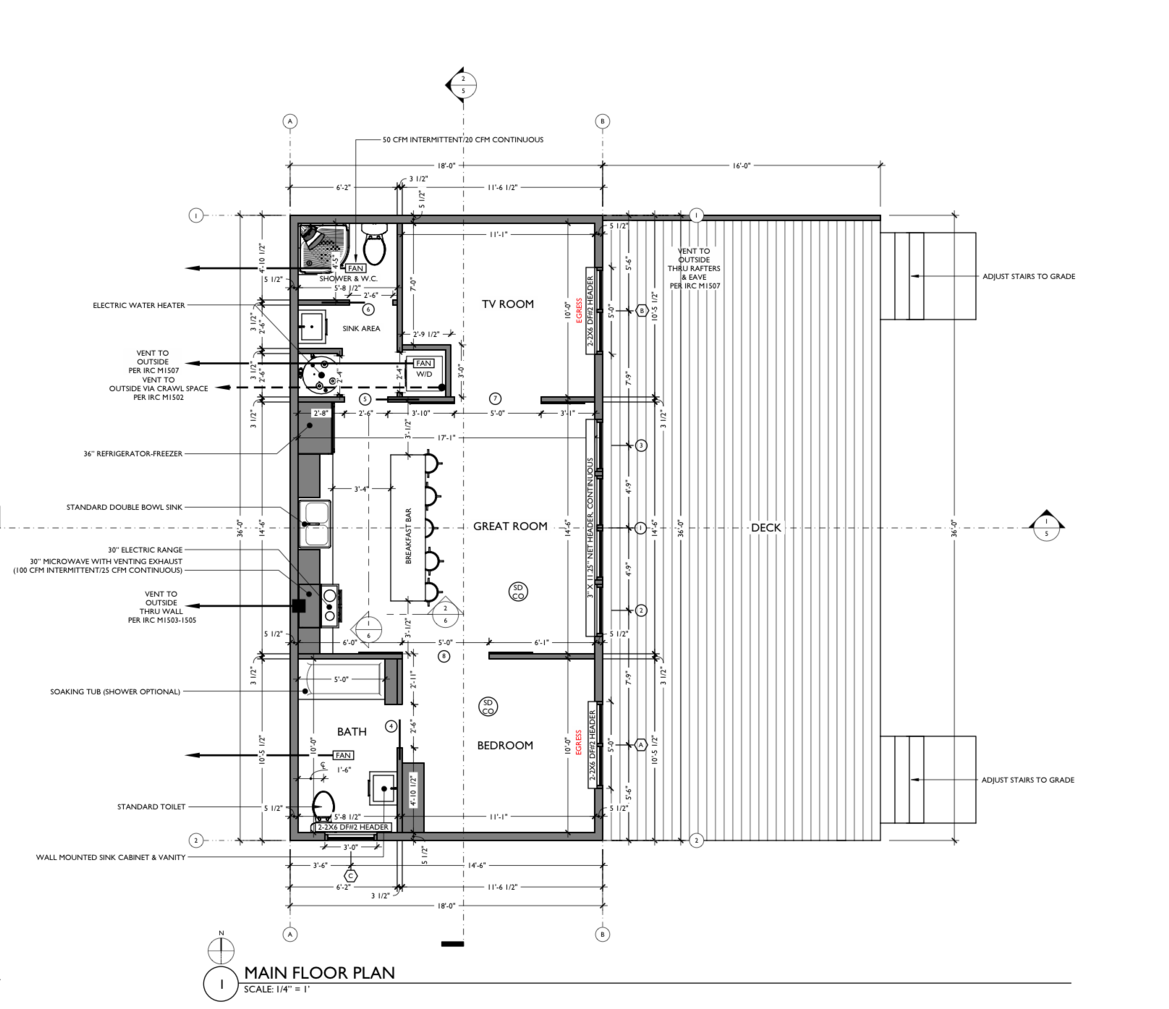

No. 58 - Fieldview (Main floor plan)
No. 58 - Fieldview (Elevations)
No. 58 - Fieldview Loft Plan

No. 58 - Fieldview

49.99

Free Study Plan

One bedroom, 1.75 bathroom + TV Room, 2nd bedroom or office, full kitchen + 2 ladder accessible lofts with 5'-0" headroom. Use as a full-time home, vacation cottage or DADU.

Plan is ready-to-submit or may be customized to suit.

PROJECT DATA

  • FIRST FLOOR LOAD: 40 PSF LIVE / 20 PSF DEAD
  • LOFT FLOOR LOAD: 30 PSF
  • ROOF LOAD: 25 PSF LIVE / 25 PSF DEAD (IRC TABLE R802.5.1(2) FOR CEILING ATTACHED TO RAFTERS, L/∆ = 240
  • SNOW LOAD: 25 PSF
  • DESIGN STANDARD(S): 2015 INTERNATIONAL RESIDENTIAL CODE,  2015 WSEC
  • HOUSE SQUARE FOOTAGE: 648 SF
  • HOUSE DIMENSIONS: 18’-0” X 36’-0”
  • DECK: 16’-0” X 36’-0’ (576 SQUARE FEET)
  • LEVELS:  1
  • OVERALL HEIGHT: 17’-9 7/16”
  • BEDROOMS: 1 + LOFT SPACE
  • BATHROOM: 1.75
  • FOUNDATION: CRAWL SPACE
  • HEATING: DUCTLESS MINI-SPLIT
  • WATER HEATING: ELECTRIC TANK
  • PRINT SIZE: ARCH D 24" X 36” (A1 594 X 841); BLACK & WHITE SHEETS
