#64 Loft House Plan

#64 Loft House Plan

99.00

House Description

  • Design Standard: 2018 International Residential Code

  • Seismic Design Category: D2

  • Wind Design Category: B

  • First Floor Load: 40 PSF LIVE / 10 PSF DEAD

  • Second Floor (loft) Load: 40 PSF LIVE / 10 PSF DEAD

  • Roof Load: 20 PSF LIVE / 20 PSF DEAD (IRC TABLE R802.5.1(2) for ceiling attached to rafters, L/∆ = 240

  • Snow Load: 25 PSF

  • ANSI Calculated Square Footage: 993 SQ FT

  • Structure Dimensions: 24’-0” X 36’-0” (864 SQ FT)

  • Mezzanine Dimensions: 13’-4 ½” X 9’-7 ½” (129 SQ FT)

  • Porch: 6’-0” X 12’-0” (72 SQ FT)

  • Deck: 16’-0” X 24’-0” (384 SQ FT)

  • Levels: 1 + mezzanine (no attic, cathedral ceiling)

  • Overall Height: 22’ - 0 ⅜”

  • Bedroom(s): 1

  • Bathroom(s): 1 + ½

  • Foundation: ventilated crawl space

  • Heating: ductless mini-split

  • Water Heating: electric tank

  • Print size: ARCH D 24" X 36” (A1 594 X 841); black & white sheets

What’s in this plan

Sheet Index:

  • A101: Project Details/Cover Sheet

  • A201: Site Plan

  • A301: Foundation Plan

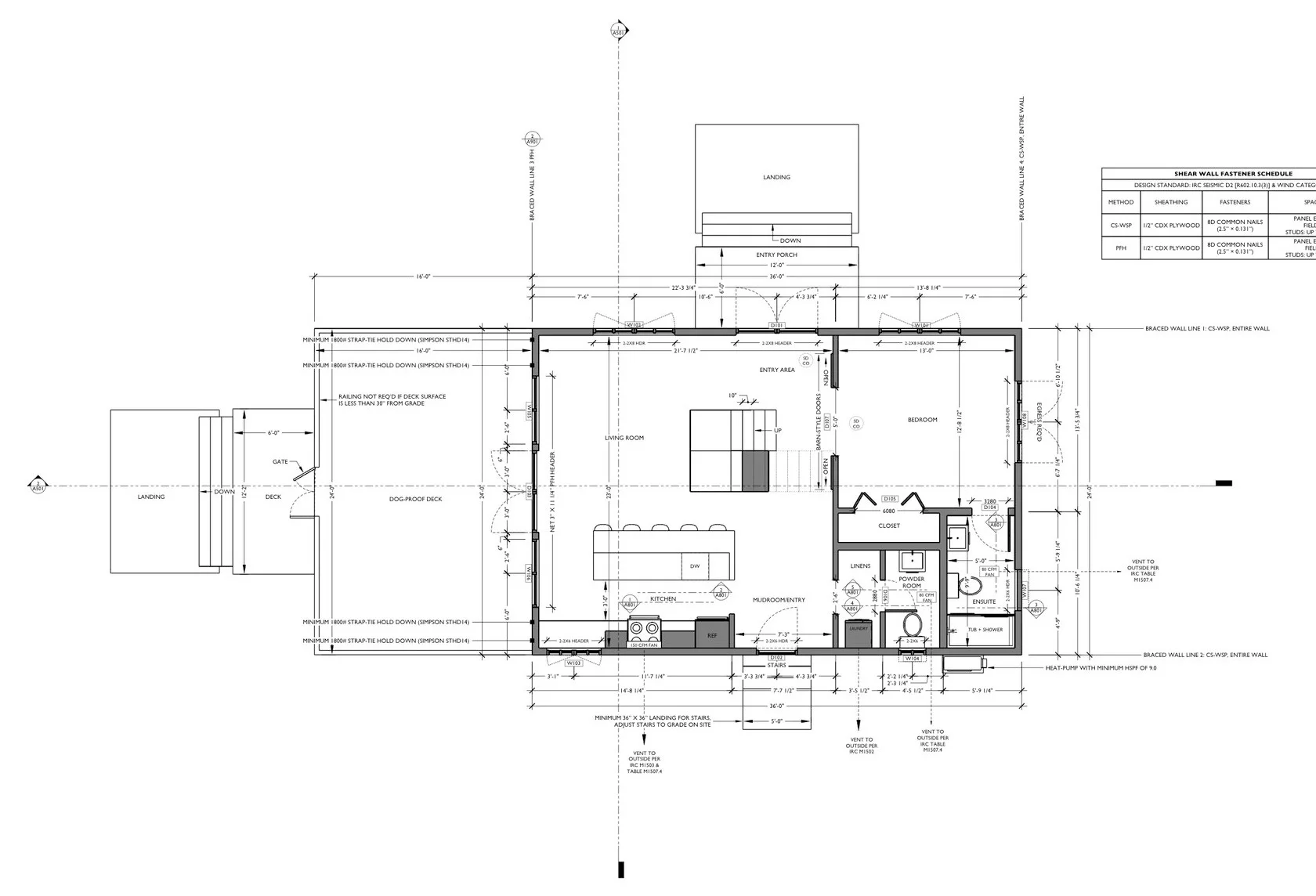

  • A401: Floor Plan 1

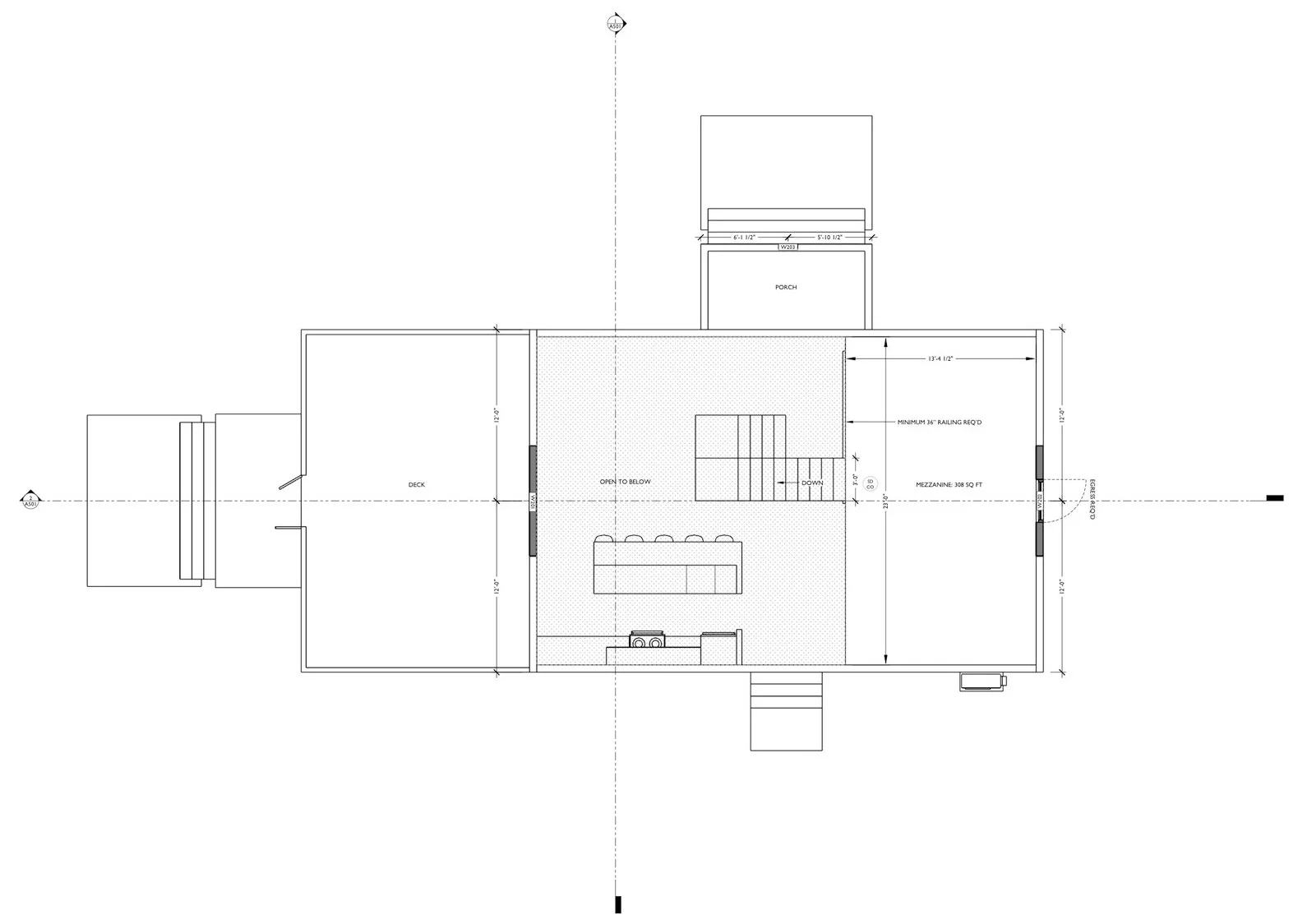

  • A401.1: Loft Plan

  • A402: Floor Framing Plan

  • A403: Roof Framing Plan

  • A404: Electrical Plan

  • A501: Building Sections

  • A601: Building Elevations

  • A701: Wall Section Details

  • A801: Interior Elevations for kitchen & bathrooms

  • A901: Construction Details

  • A1001: Window & Door Schedules

  • A1002: IRC Fastener Schedules

  • A2001: Washington State Energy Code compliance forms, optional

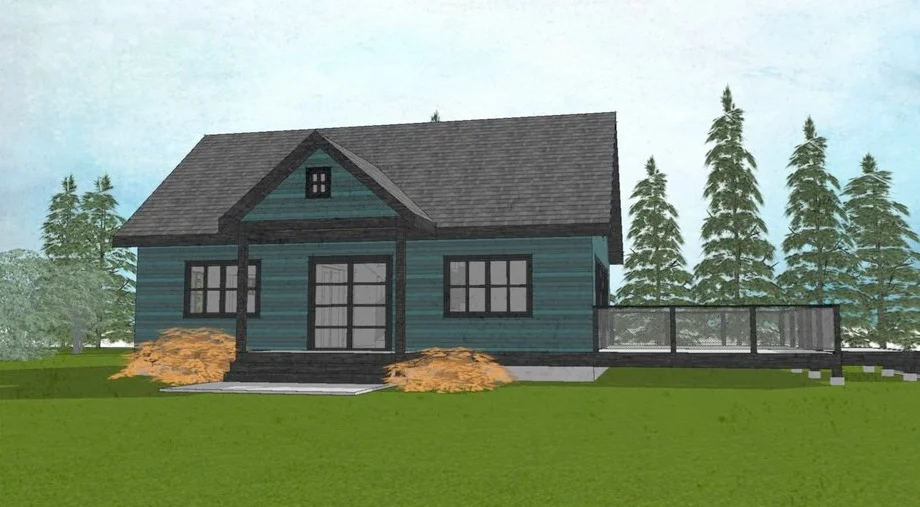

  • A3001: 3D Isometric Views
