Purchase includes PDF plan & SketchUp file. Plan is ready to submit for permitting and construction.
House and plan details:
Design Standard: International Residential Code (IRC)
Seismic design category: D2
Wind design category: Exposure C
Snow load: 75 PSF
House size: 288 square feet main floor plus 113 square foot loft (11’-1” X 10’-3”)
House dimensions: 12’ X 24’
Deck size: 72 square feet
Deck dimensions: 6’ x 12’
Levels: 1 + loft
Overall height: 17’ - 3”
Foundation: Ventilated crawl space
Heating: Electric wall heaters with wood stove back-up
Water heating: tankless electric (LPG or NG optional)
Printing size: ARCH D 24" X 36” (A1 594 X 841)

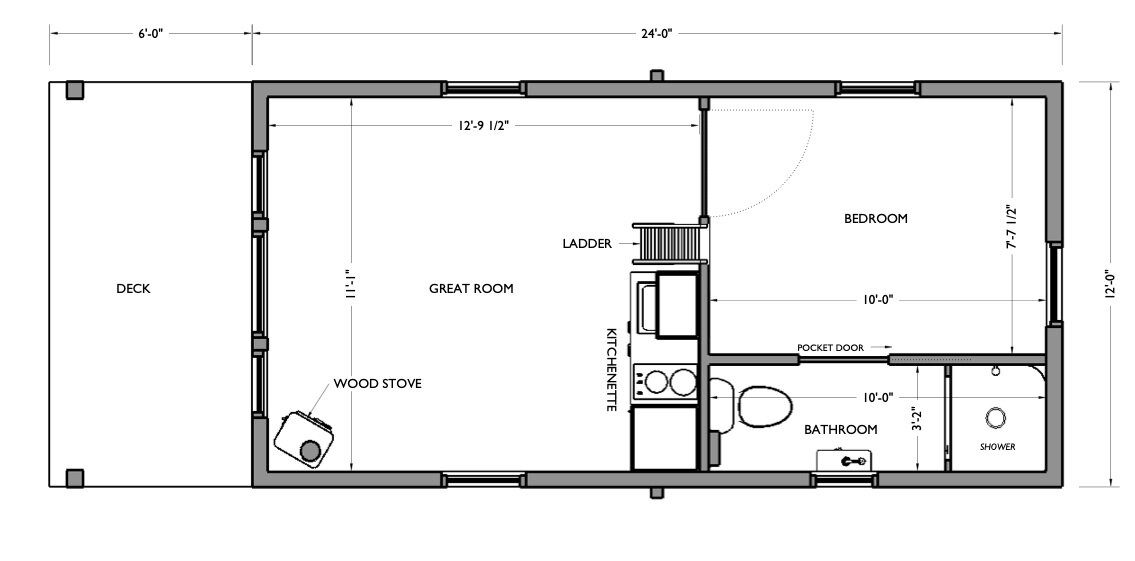

PDF plan. Plan includes elevations, floor plans with electrical layout and seismic/high wind braced wall lines, foundation plan, floor and roof framing plans, house cross sections, construction details, window, door and fastener schedules, and license to build one house.
SketchUp file. A modifiable SketchUp model is also included in this purchase.
