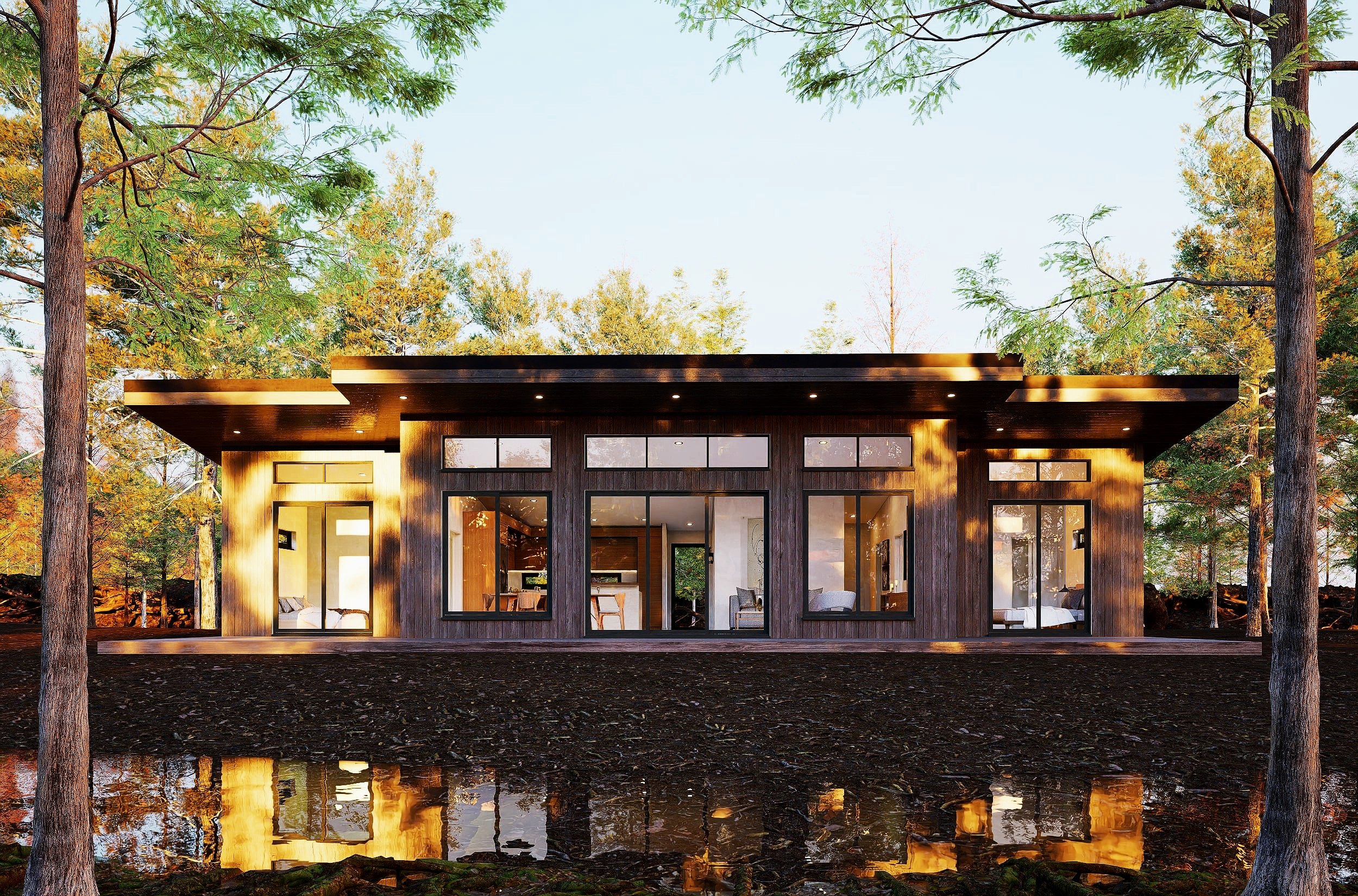

#40 Shaughnessy Plan

#40 Shaughnessy Plan

99.00

House Details

Design standard: International Residential Code

Seismic design category: D1

Wind design category:  Exposure B

Roof load: TRUSJOIST™ span table for 16” TJI® 560

Snow load: 0-70 PSF

Conditioned square footage: 1,320

Structure dimensions: 28’ X 54’ IRREGULAR

Levels: 1

Overall height: 14’ - 7”

Bedrooms: 3

Bathrooms: 2

Foundation: R-30 insulated slab

Walls: 2X6 with R-21+6 insulation

Roof: TJI® with R-49 minimum insulation (up to R-60+ possible)

Heating system: Ductless mini-split: wood burning/gas/LPG stove optional

Water heating: Tank electric

Printing size: ARCH D 24" X 36” (A1 594 X 841); Black & white recommended

What’s in this plan?

  • A101 PROJECT DESCRIPTION

  • A201 SITE PLAN

  • A301 FOUNDATION PLAN

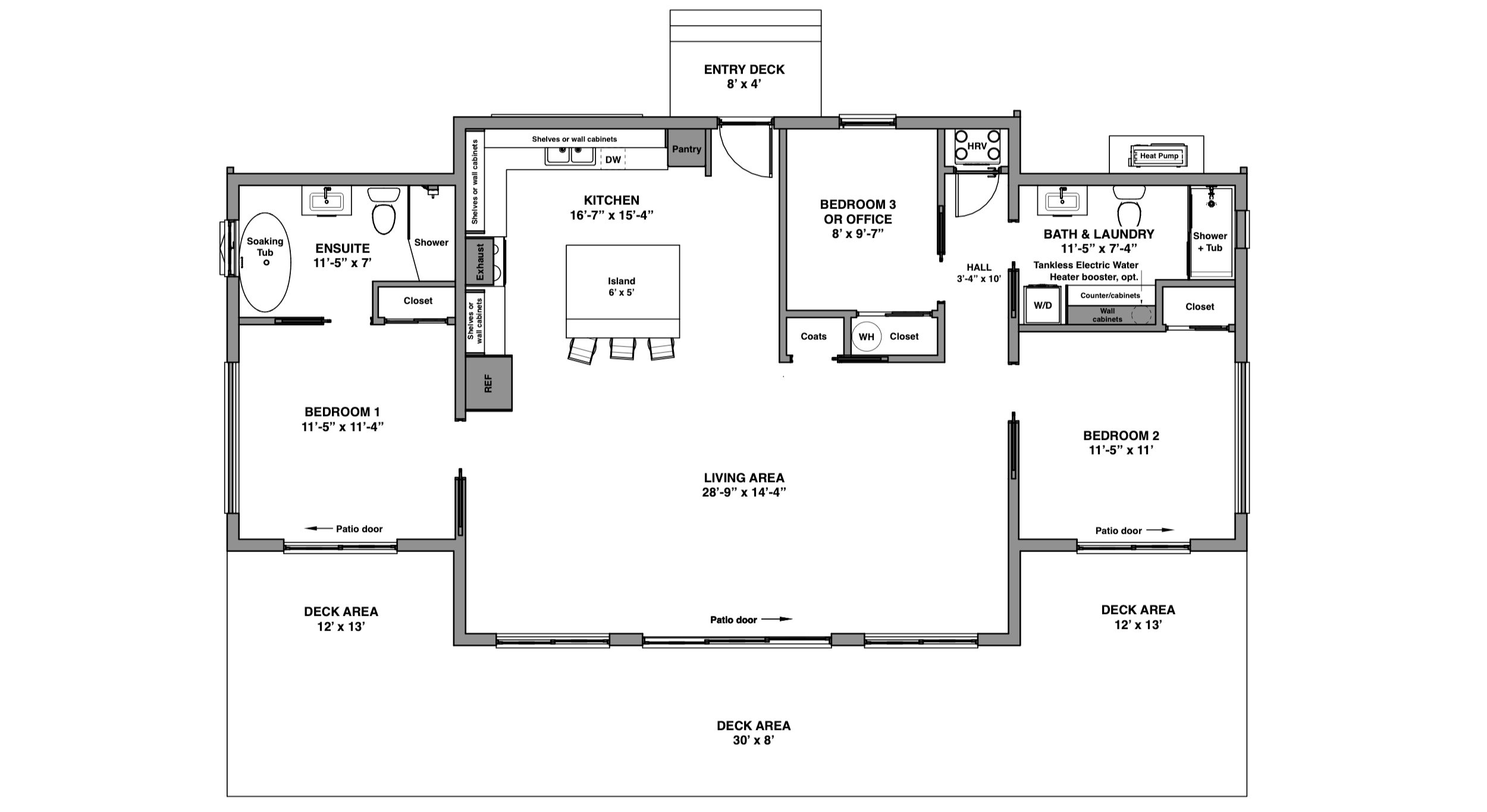

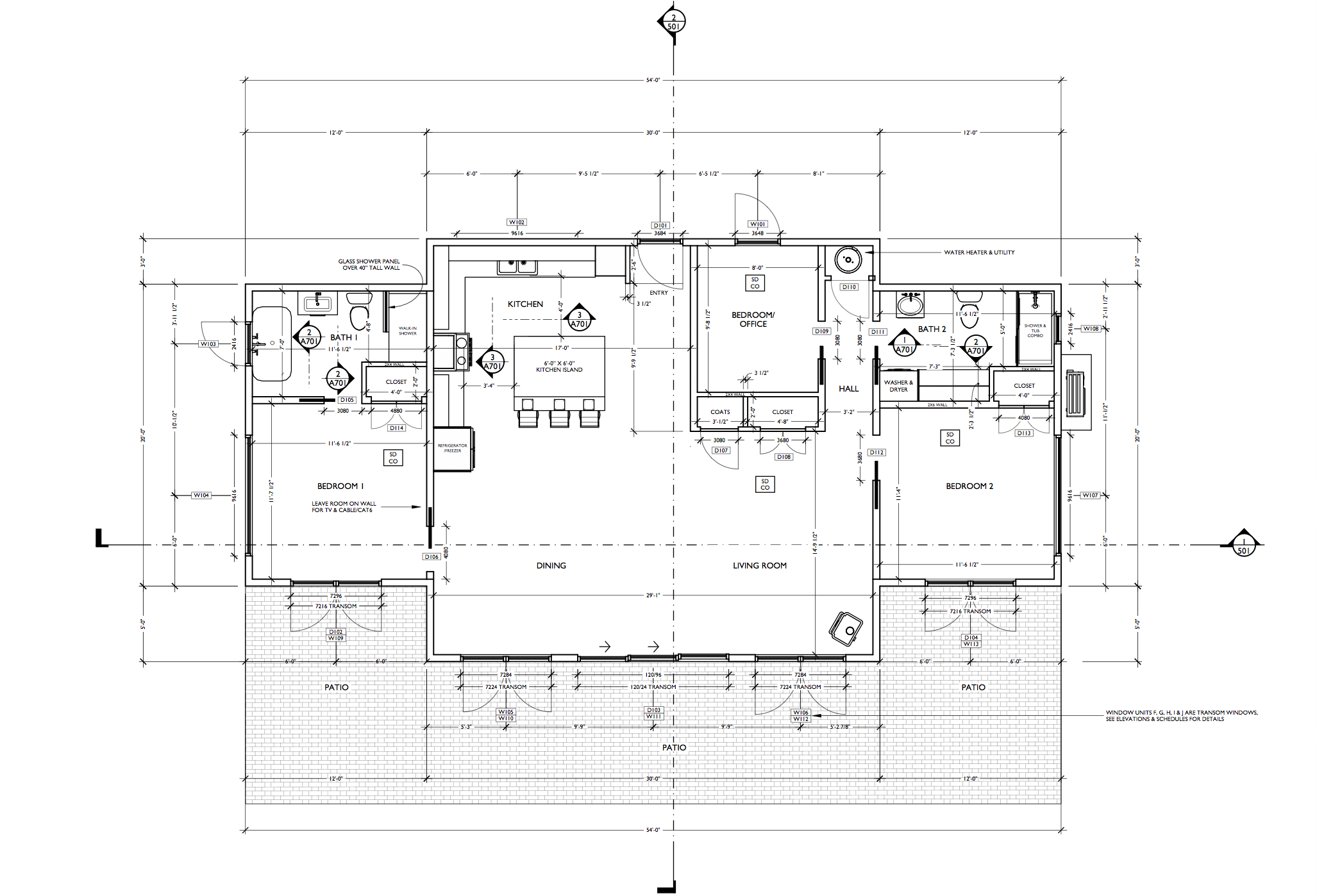

  • A401 FLOOR PLAN, WINDOW & DOOR SCHEDULES

  • A402 SEISMIC & HIGH WIND BRACED WALL PLANS

  • A403 ROOF FRAMING PL

  • A404 ELECTRICAL & HVAC PLANS

  • A501 BUILDING SECTIONS

  • A502 WALL SECTION DETAILS

  • A601 EXTERIOR BUILDING ELEVATION

  • A701 INTERIOR KITCHEN & BATH ELEVATIONS

  • A801 CONSTRUCTION DETAILS

  • A901 IRC FASTENER SCHEDULES
